I ended up building the tube cricket in a mystery head cabinet from the music go round junk bin. I mounted the tiny cricket in a old radio chassis and covered the face with a vintage license plate, and recycled metal mesh.
Category Archives: cricket
Tube Cricket Cabinet

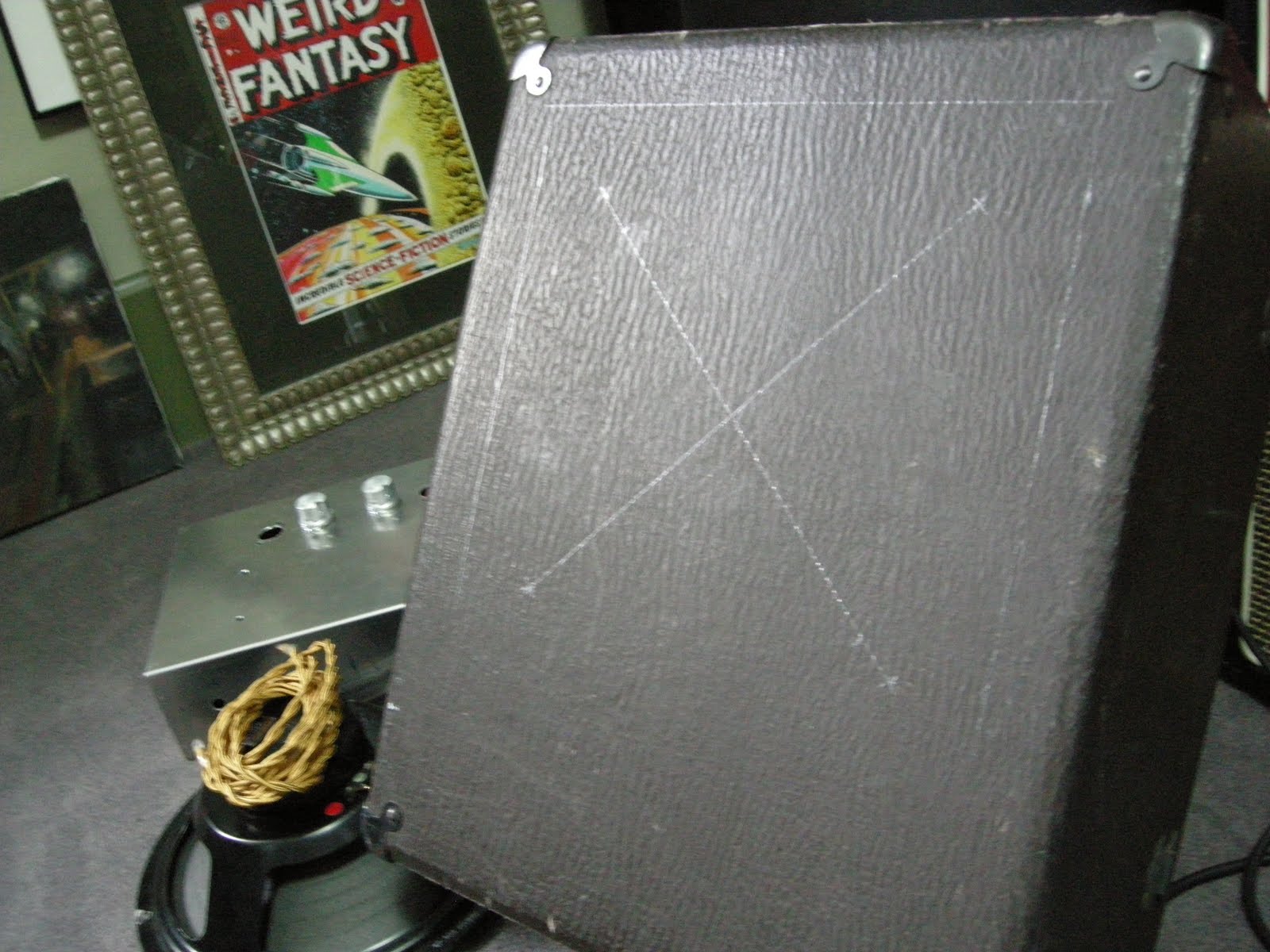

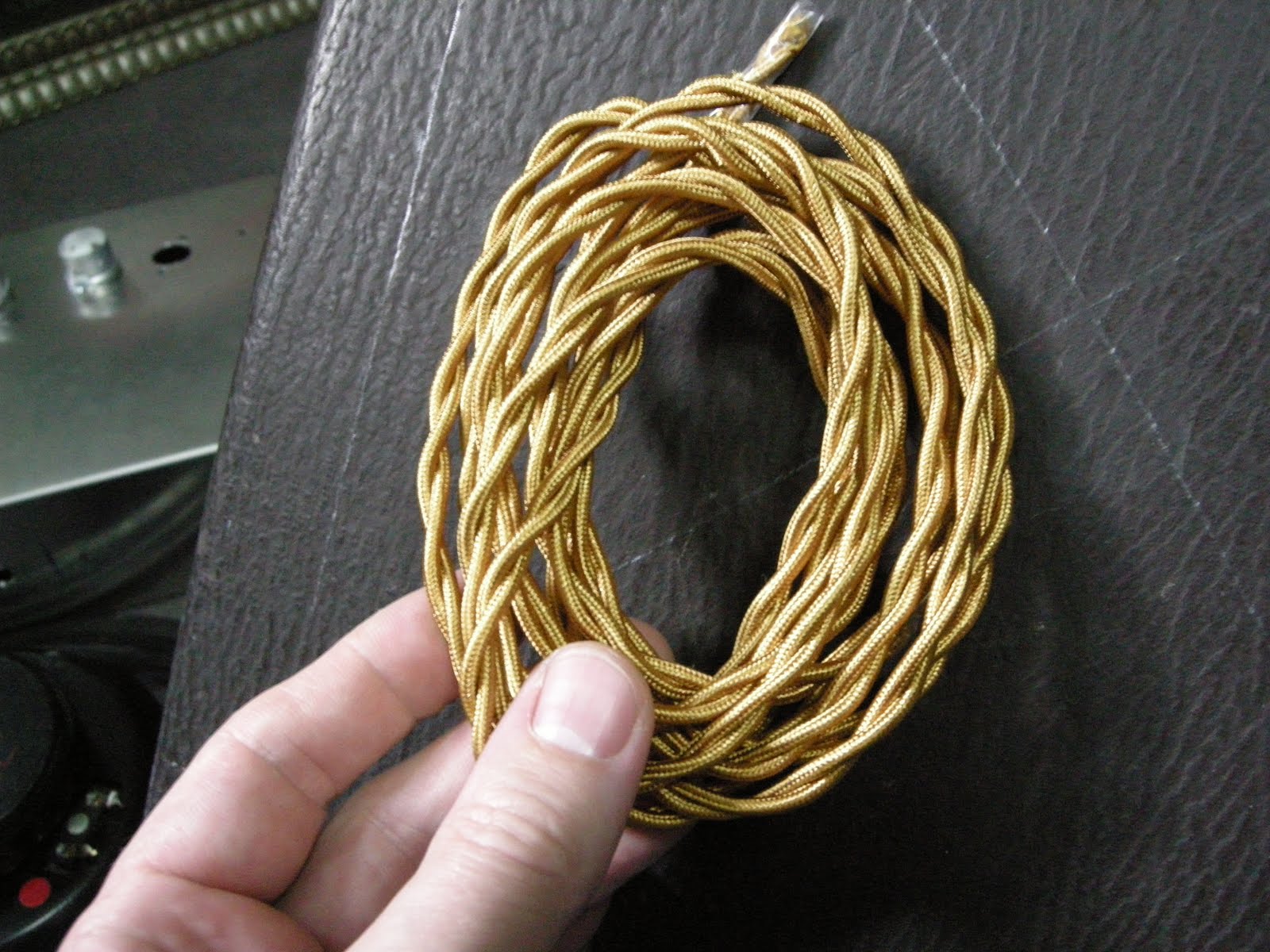

Started layout on a new case for the tube cricket. I think the tube cricket is a bit too powerful for the Philco radio case and it’s 6″ pignose speaker. Layout lines shown with some “vintage” cloth covered lamp cord I scored on ebay.
Beavis Audio Research Tube Cricket PCB Assembly Time Lapse
Time lapse shot with an eyesight camera. Faithless by Rush as a backing track. They played it last night at the show!
Tube Cricket parts have arrived!
Spent an hour working sorting parts for a 1.5 watt practice amp based on a 12au7c
Is this the one?

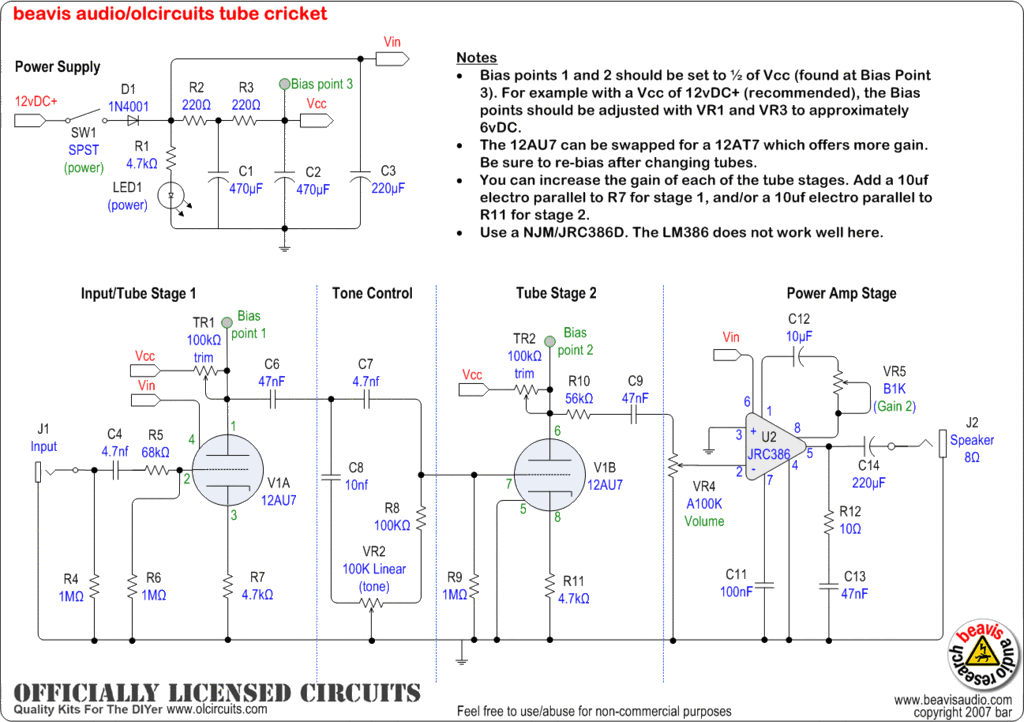

The Beavis tube cricket! 1.5 ish watts based on a 12AU7 and powered by a 12V ac adapter. I ordered a PCB as soon as I saw it.
