Snowday Stomp Box II – Protoboard!
I’ve been looking at several schematics for stomp boxes and I like the idea of a prototype platform geared towards guitar effects. Inspired by ZZZZZZZ I wanted to build a self contained breadboard with easy access to 1/4″ IO and an assortment of switches and potentiometers.
Here’s the results:
Roadmap

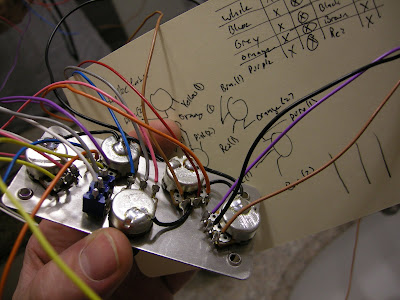

Gut Shot

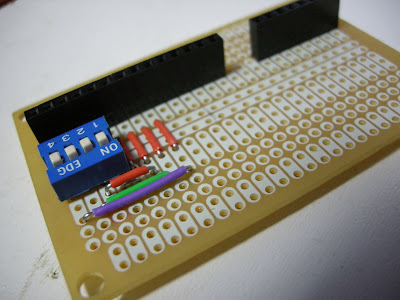

The potentieometers will feed the headers on this protoboard along with the 4 dip switches shown
Here is the completed 5 pot + 1 spdt switch box
I ebayed a couple new breadboards, I’ll post new pics when the project starts coming together.
